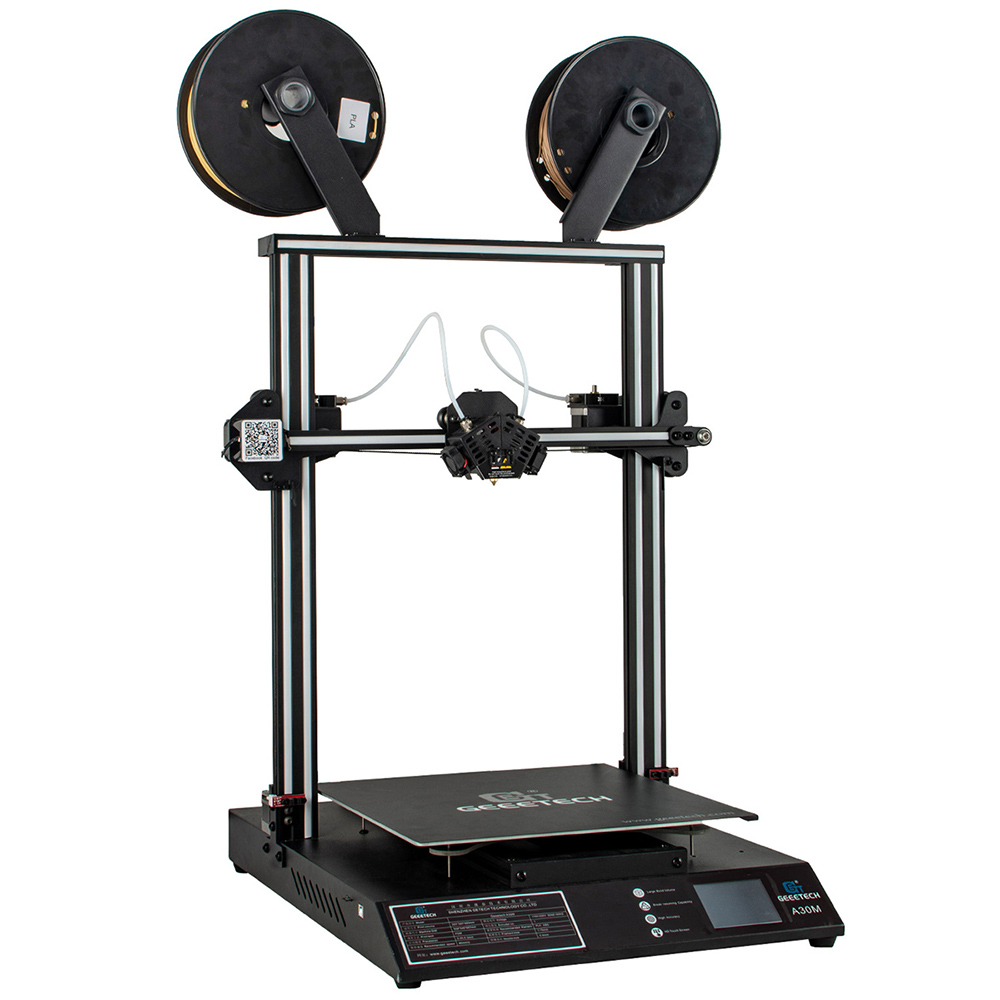

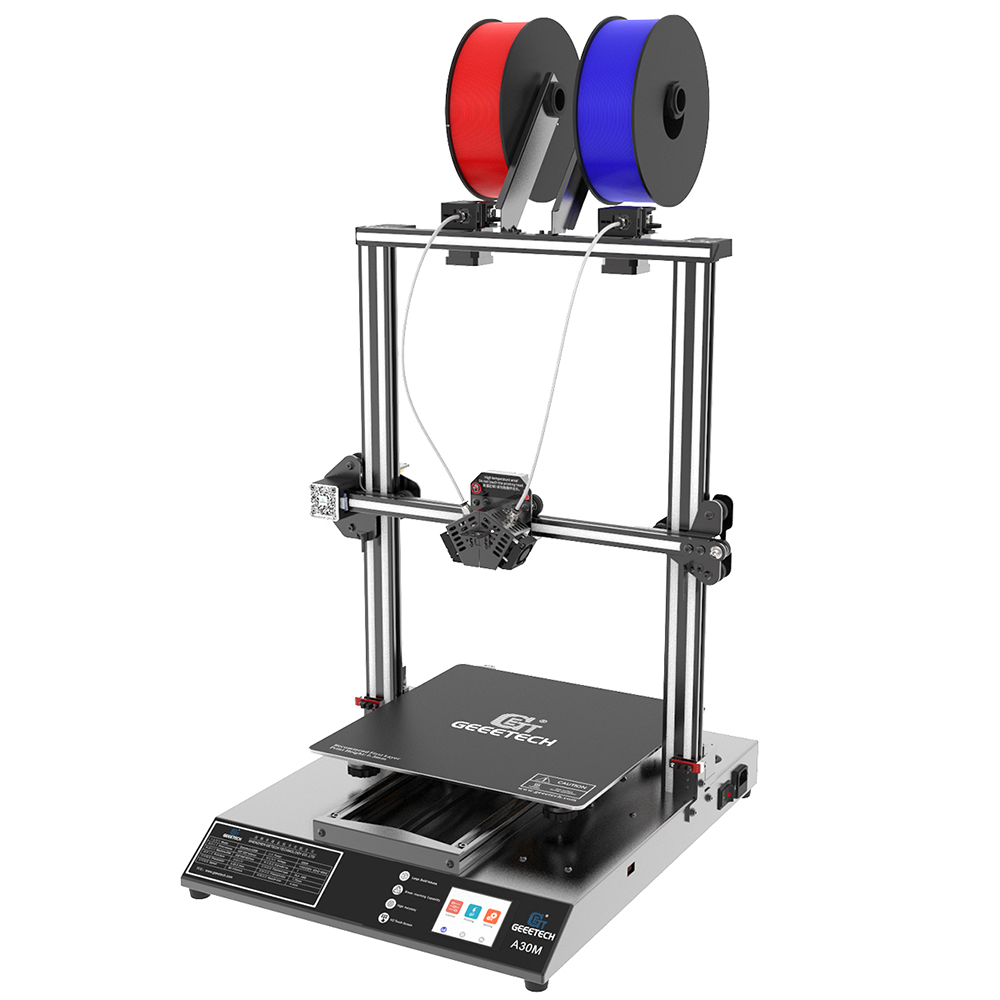

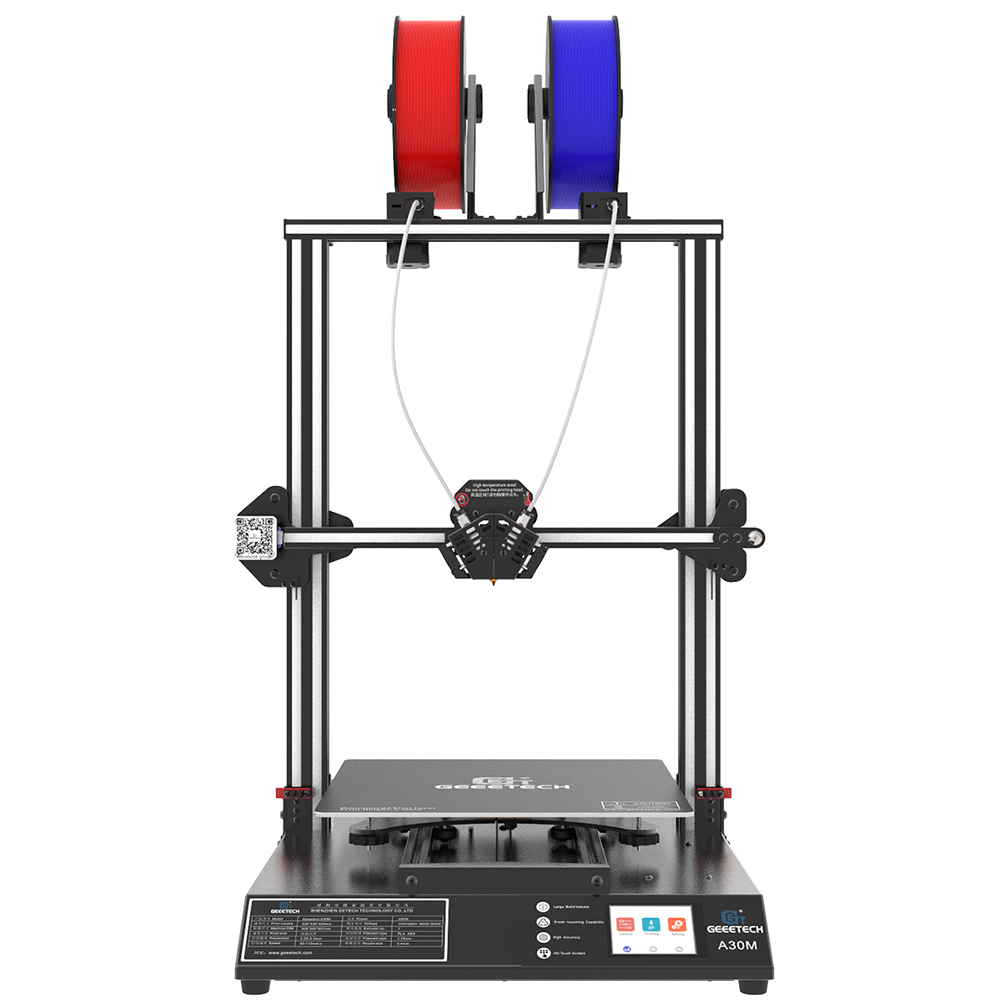

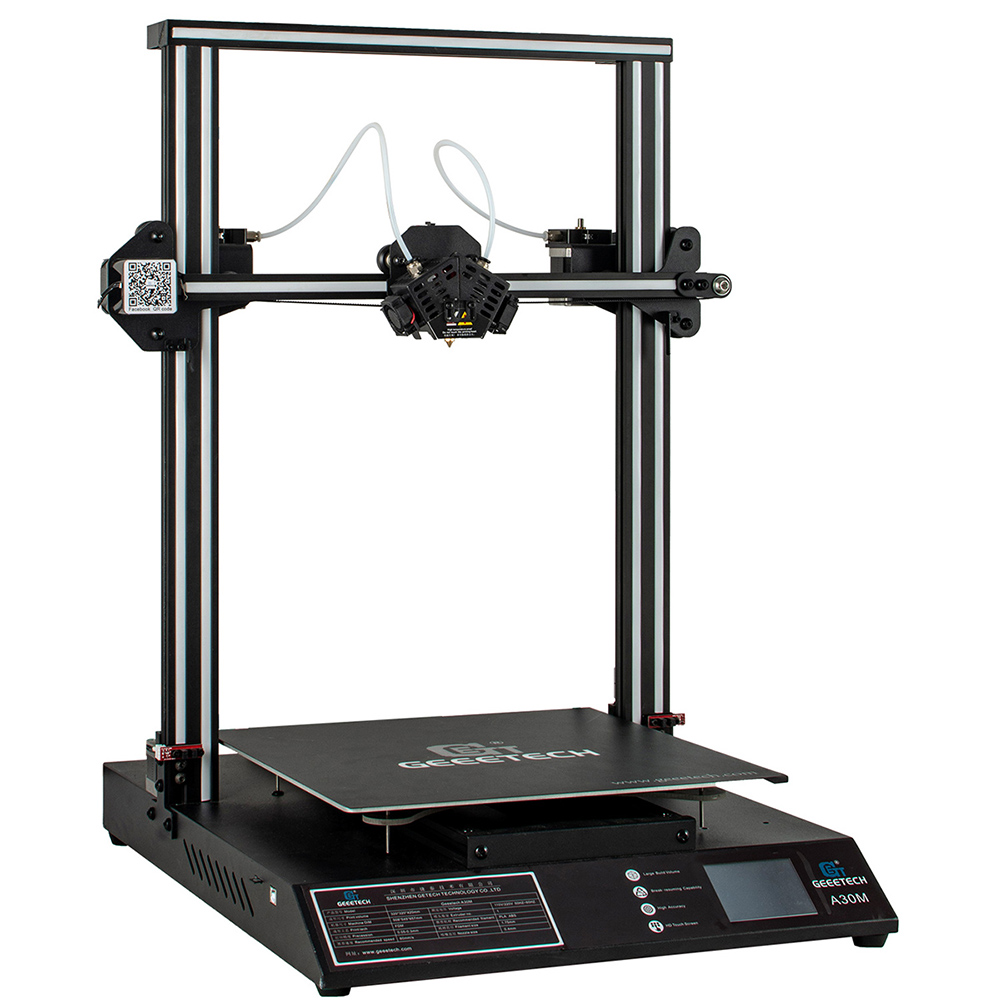

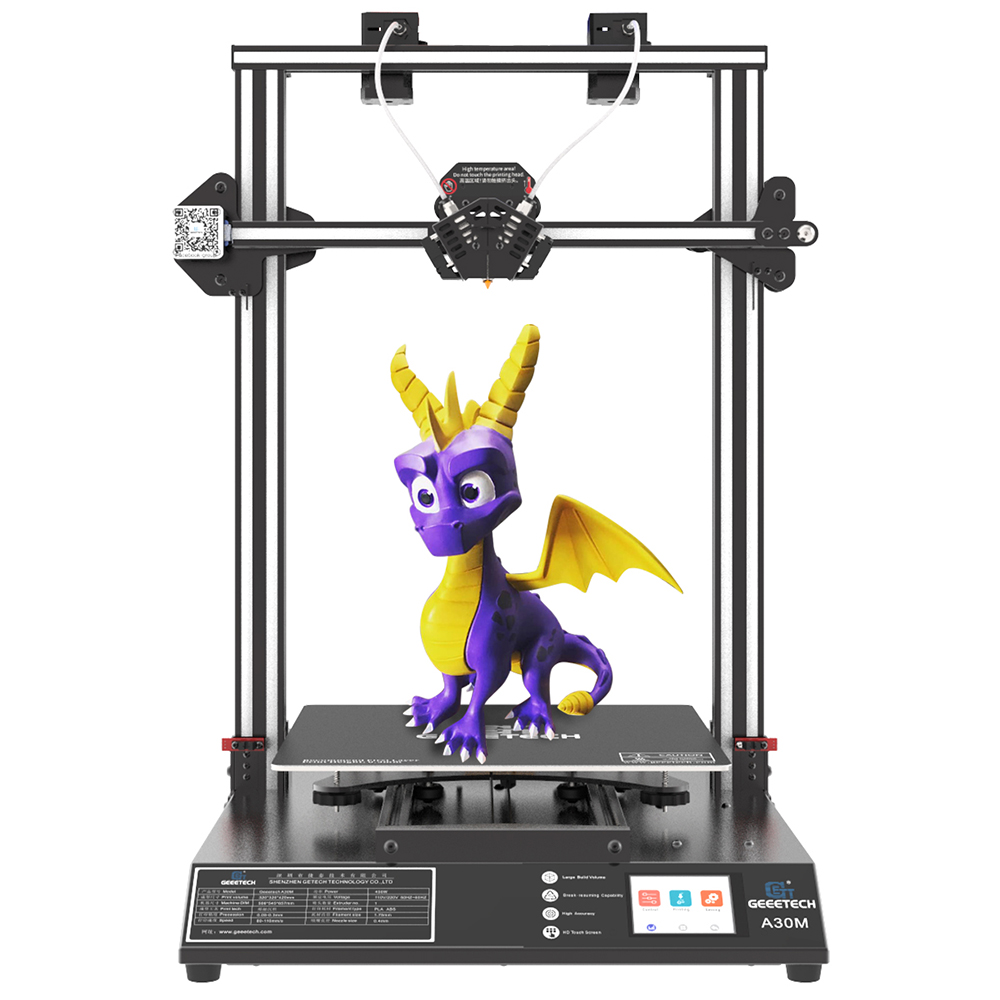

Geeetech A30M
Geeetech A30M 3D printer, adopting Smarrto control board, delivers mix-color objects and greatly enriches your 3D printing life. Keeping the good performance of Geeetech’s portfolio of 3D printers, it aims to provide users with quality printout and satisfactory printing experience.
With its build volume as 320*320*420mm³,and the classic Prusa I3 3D printers’ gantry structure, A30M makes the best of the building platform and enables you to view the printing details in 360°. Printing at the accuracy of 0.1mm, it delivers objects with smooth surface finish, clear angles and strong structure. Besides, A30M comes with filament detector and break-resuming capability, greatly enhancing your 3D printing experience. Different from other models, the A30M uses brand PSU, longer life time, more stable and safe.
To enrich your mix-color printing experience, Geeetech developed a tool kit: Color Mixer. It’s free and user-friendly. You can create thousands program of mixing with it.
Let’s explore the mix-color printing journey with A30M!
Features:
l Password protection
l Full touch screen
l Screen brightness adjustment
l Dual Z axis optical limit switch
l Dual Z axis
l TF card stand-alone printing
l Filament sensor
l Power loss-resuming
l Auto bed leveling
l 360°ventilation design
l Large volume
l High accuracy
Printing Parameters
Printing technology: FDM
Printing volume: 320*320*420mm3
Printing accuracy: 0.1~0.2mm
Position precision: X/Y: 0.011mm Z: 0.0025mm
Printing speed: 60mm/s

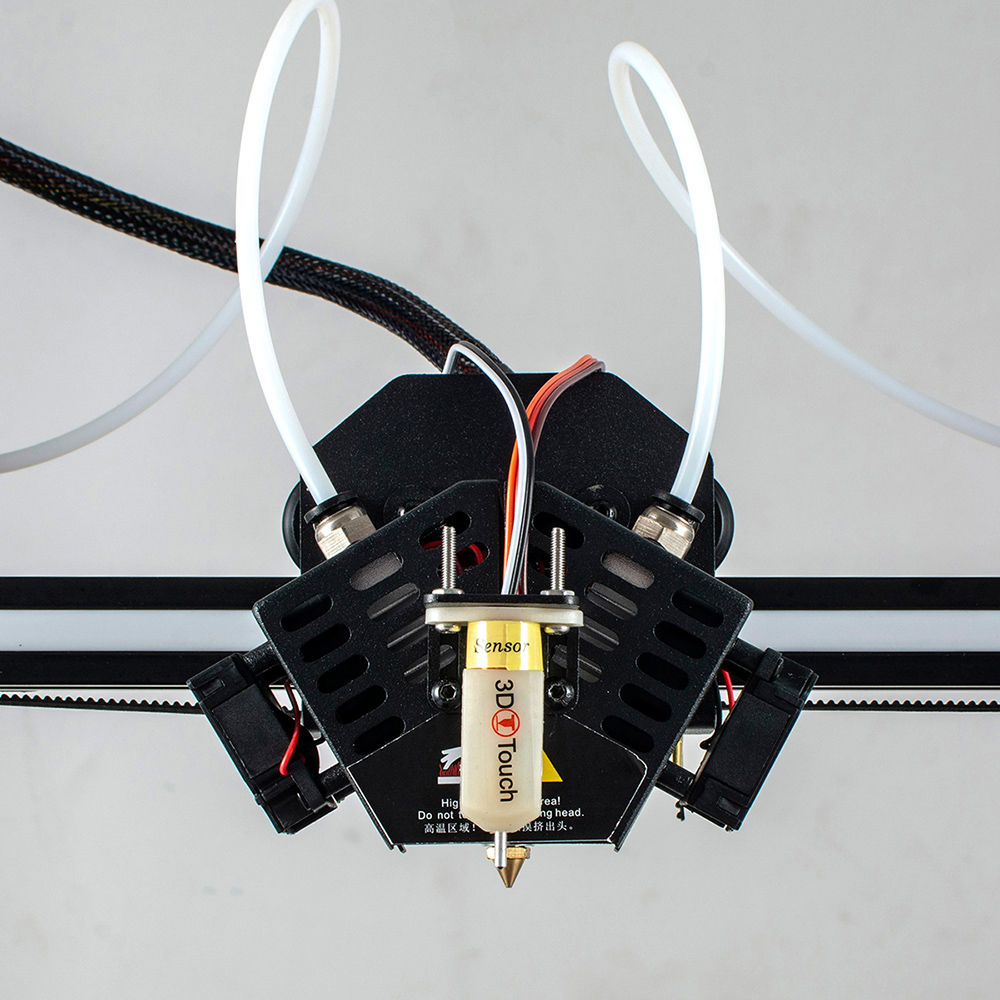

Nozzle quantity: 2-in-1-out single nozzle
Nozzle diameter: 0.4mm
Filament: diameter 1.75mm; ABS/ PLA, etc.
Environment temperature: 10℃-40℃
Operating system: Windows/Mac/Linux
Slicing software: Repetier-Host, EasyPrint 3D, Cura
File format: .gcode
l Electrical Parameter
Power input: 100-120V/200-240V
Power output: DC24V/14.6A，350W
Connectivity: TF card, USB
Touch screen: 3.2 -Inch Full-color Touch Screen
l Mechanical Parameter
Printer size: 508x545x657 mm3
Package size: 670x560x320 mm3
Net weight: 13.8kg
Gross weight: 20.5kg
